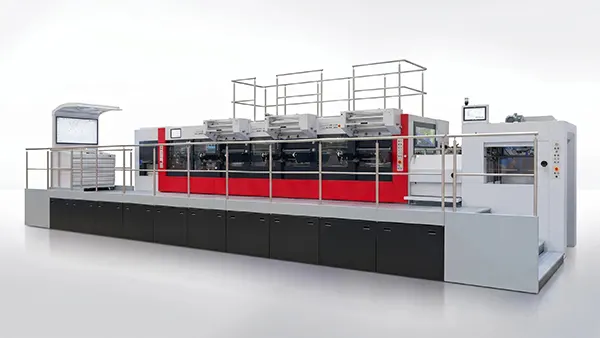

Tripress 92FFCSB
Hot Foil Stamping Machine
The MK Tripress 92FFCSB hot foil stamping machine features three main stations, all capable of high-precision hot foil stamping. The third station can be seamlessly switched to die-cutting mode, supporting stripping and blanking operations. This allows for an integrated production workflow combining foil stamping with die-cutting and blanking. This hot foil stamper machine enables rapid switching between die-cutting/blanking and fill-sheet delivery without the need for additional accessories, significantly enhancing operational convenience and workflow flexibility.
With a maximum speed of 6000 sheets/hour, this hot foil stamper delivers triple the efficiency of traditional single-unit foil stamping machine. Equipped with a newly designed servo-driven adjustment system for the honeycomb and base plates, setup time is efficiently reduced via the HMI. Furthermore, the external longitudinal vacuum foil feeding and motorized foil pull system realize non-stop foil replacement, enhancing continuous productivity.
| Model | |
| Max. Sheet Size | 920 × 650mm |
| Min. Sheet Size | 360 × 320mm |
| Max. Die-Cutting Size | 910 × 630mm |
| Max. Foil Stamping Size | 810 × 600mm (External foil Unwinding) |
| Gripper Margin | 9-17mm |
| Die Chase Inner Size | 960 × 666mm |
| Paper Range | 90-2000g/m² (cardboard) 0.1-2mm (cardboard) ≤4mm (corrugated board) ≤2mm corrugated board (flatness < 20mm/m²) (with MasterSet) |
| Repeat Registration Accuracy | ≤±0.10mm (die-cutting and standard foil stamping) ≤±0.20mm (hologram positioning foil stamping) ≤±0.10mm (with MasterSet) |
| Max. Pressure | 200 tons |
| Max. Speed | 6000 sheets/h |
| Max. Feeding Pile Height | 1500mm (including pallet) |
| Max. Delivery Pile Height | 1200mm (including pallet, blanking model) 1300mm (including pallet, full sheet delivery) |
| Max. Foil Diameter | Ø300mm (longitudinal) Ø200mm (transversal) |
| Heating System | 20 zones, adjustable from 40℃ to 180℃ |
| Foil Width | 20-810mm |

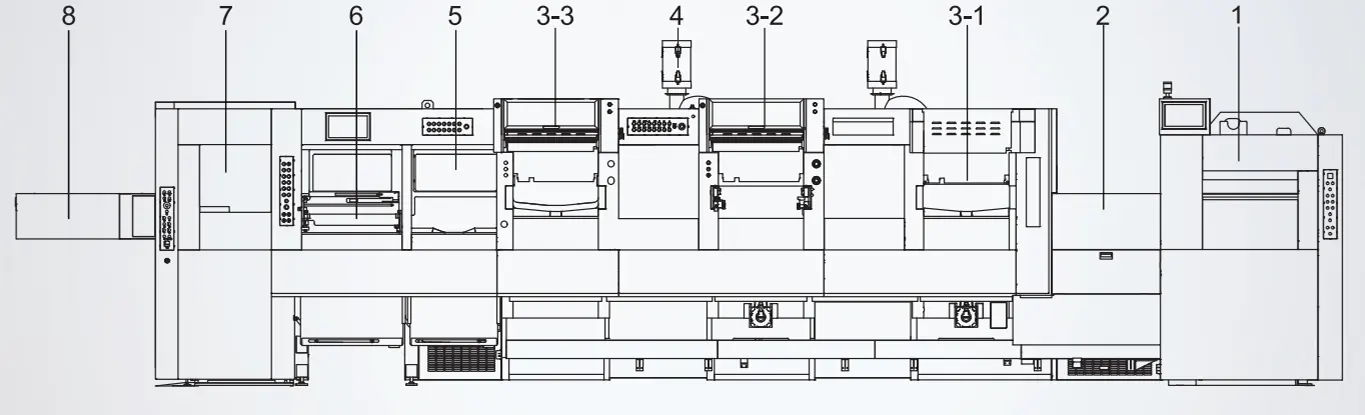

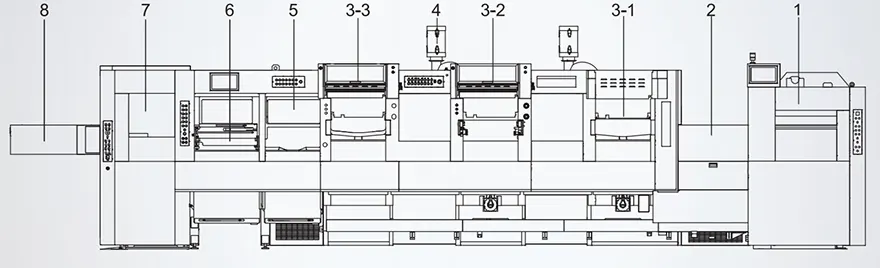

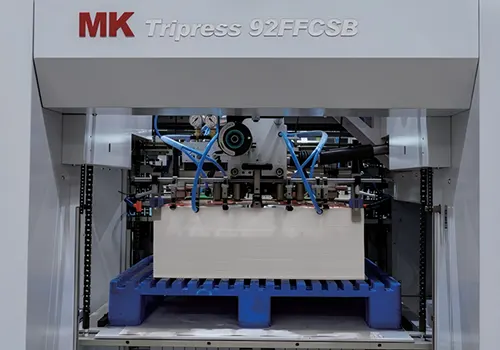

- Feeder Station: High-speed non-stop paper feeding system
- Feeding Platform: Integrated adjustable pressing roller, deceleration mechanism before paper arrival, push/pull side lay

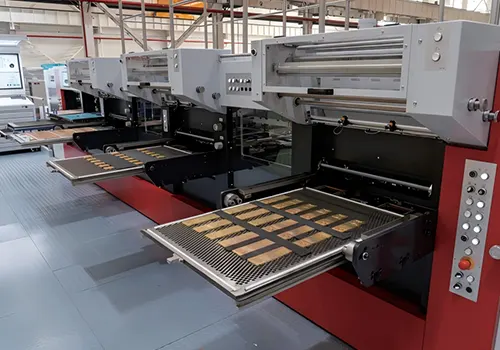

- Main Station: Pneumatic chase locking, servo micro-adjustment for base plate and honeycomb plate (die cutting chase), and servo automatic pressure release function

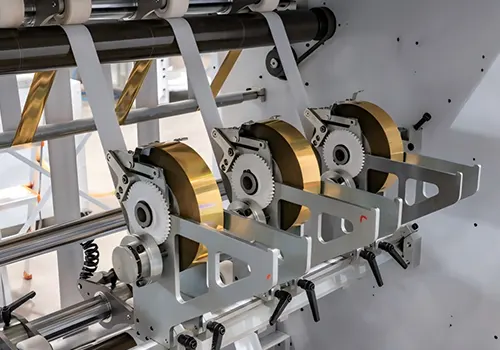

- External Foil Feeding Device: High-precision longitudinal vacuum foil feeding

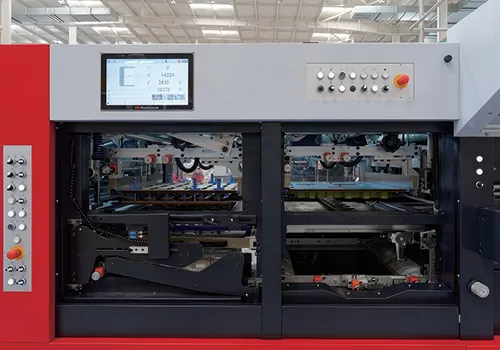

- Stripping Station: Center positioning system, quick-lock motorized lifting system
- Blanking Station: Center positioning system, quick-lock motorized lifting system
- Non-Stop Sampling and Auxiliary Delivery Device: Enhance continuous production efficiency
- Paper Delivery Device: Optimized for high-speed, uniform stacking
- Vacuum feeding table (optional)
- Motorized lateral alignment adjustment
- Feeder head with both front and side alignment
- Integrated pressing roller adjustment, easy adjustment
- Ultrasonic double-sheet detection
- Mechanical drive for all three main stations, stable, efficient and energy-efficient
- New gripper bar positioning system highly increases accuracy stability
- New servo pressure adjustment for quick pressure control
- New servo fine-tuning for honeycomb plate and base plate
- External foil feeding system, easy to replace foil roll, reducing machine stops, increasing efficiency.
- New foil path and waste foil path design
- Motorized foil assembling system for 920 mm format
- Sampling without stripping the sample sheet, easy sampling
- New gripper bar soft pressing system for sheet transfer to blanking tools stably
- New paper laying and auxiliary delivery inserter rod system, quick switch between blanking and full sheet delivery, improving the full sheet alignment
- Independent servo drive
- Auto-lifting alignment system, easy to switch of blanking and full sheet delivery
- Fuji buttons with user-friendly panel payout

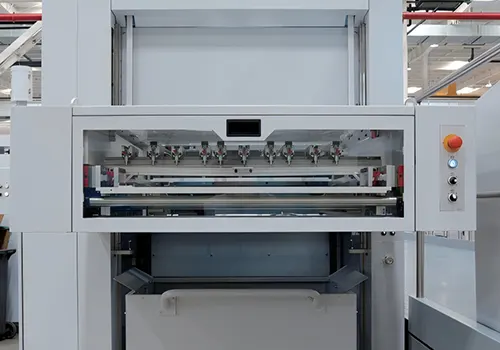

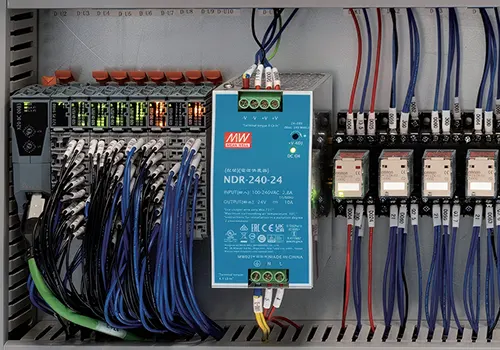

- High quality import electrical elements
- Dual safety circuit system
- PLC controller Reliable and efficient
- Fuji frequency converter ensure system safety
