MK 1020CF Cold Foil Stamping Machine
Cold Foil Stamping Machine
Request a Quote
Watch Video
Our MK 1020CF cold foil stamping machines are designed for printed packaging that needs metallic foil effects without the heated die used in traditional hot foil stamping. During production, the printing unit applies adhesive to the areas that need foil, and the cold foil unit presses the foil onto those selected parts of the design. The cold foiling process creates a clean metallic finish that is ideal for printed materials used for tobacco and beverage cartons, cosmetic boxes, self-adhesive labels, and other paper-based products. Automatic foil handling and tension control keep the foil running evenly through the cold foil stamping process, so the metallic finish stays more consistent from sheet to sheet.
Technical Parameters
| Model | MK1020CF |
| Foil Width | 400–970 mm |
| Foil Stamping Size in Running Direction | 360–700 mm |
| Suitable Materials | 90–350 g/m² |
| Max. Working Speed | 8000 sheets/hour |
| Max. Foil Roll Diameter | 600 mm |
| Compressed Air Requirements | Pressure: 0.7 MPa; flow rate: 2.0 m³/min |
| Overall Dimensions (L × W × H) | 2060 × 1914 × 1334 mm |
| Approx. Weight | 1.4 t, excluding foil |
Features

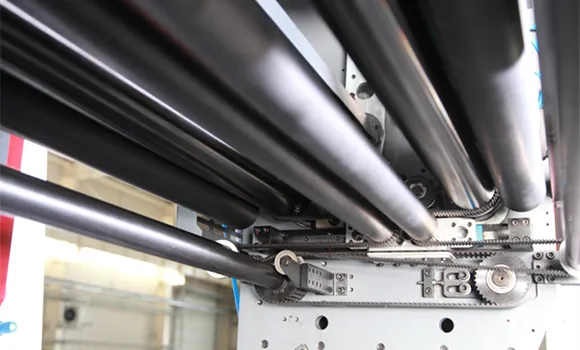

Pendulum Lever Step Device
- The patented pendulum lever step device works with an imported high-precision servo system from Germany to control foil stepping more accurately.
- Stable step movement helps reduce unnecessary foil die consumption during cold foil stamping.

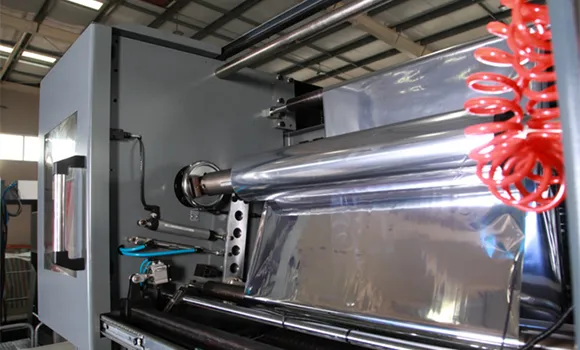

Floating Roller Tension Control
- The floating roller works with a displacement sensor to keep foil tension stable during production.
- Rewind and unwind rollers are controlled by imported servo systems, which keeps foil movement more even through the cold foil stamping process.

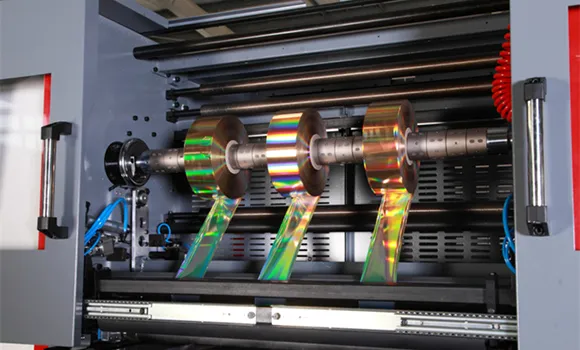

Rewind and Unwind Shaft
- Fitted with pneumatic shafts and safety chucks, the rewind and unwind shafts are easier to install, remove, and operate.

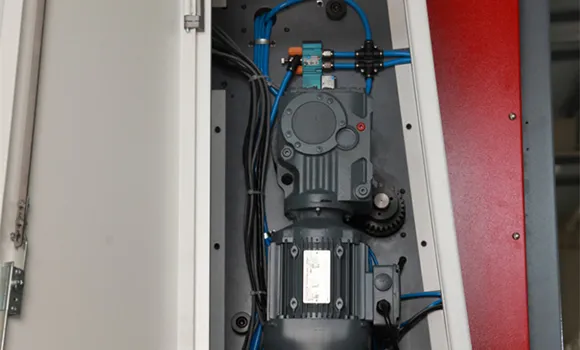

Rewind/Unwind Control
- A gear motor controls rewind and unwind movement for safer and more stable foil handling.
Systems Engineering
- An 8-inch color touchscreen gives operators access to the main control settings.
- The pendulum lever step mechanism controls foil stepping during operation.
- Displacement sensors monitor foil position and tension changes.
- Pneumatic rewind and unwind shafts make foil roll handling easier.
- Quick-assembly safety clamps simplify foil roll installation and removal.
