Powermatrix 106CSB
Automatic Die Cutter
Request a Quote
Watch Video
Powermatrix 106CSB die cutting machines are used for paperboard packaging sheets that need die cutting, stripping, and finished blank separation in one process. Powermatrix 106CSB was developed after the strategic cooperation between MK Masterwork and HDM. It uses the 106 format and reaches up to 8,000 sheets/hour for die cutting, stripping, and blanking work. These die cutting machines are suitable for folding cartons and other paperboard packaging that require stable cutting, waste removal, and organized blank collection.
Technical Parameters
| Suitable Materials | |
| Paper (Min.) | 90 g/m² |
| Solid Cardboard (Max.) | 2000 g/m² |
| Corrugated Cardboard (Max.) | 4 mm |
| Operating Parameters | |
| Max. Sheet Size | 760 × 1060 mm |
| Min. Sheet Size | 350 × 400 mm |
| Max. Die-Cutting Pressure | 2.6 MN / 260 t |
| Max. Machine Speed | 8000 sheets/hour |
| Pile Height (including Pallet) | |
| Without Non-Stop Operation | 1500 mm |
| With Non-Stop Operation | 1200 mm |
| Max. Delivery Pile Height | 1200 mm |
Main Configuration

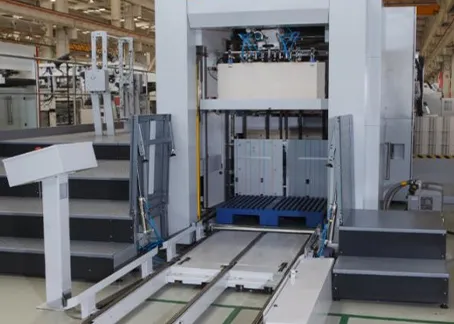

Non-stop Feeder
- Manual non-stop feeding is included as standard, while automatic non-stop feeding can be added for more automated sheet supply.
- An optional sheet pile handling system can be added to move paper stacks into the feeding section with less manual handling.
- The suction head has a quick-positioning function to shorten feeder setup between jobs.
- Automatic lateral pile adjustment keeps the sheet stack aligned before feeding.
- Mechanical double-sheet detection checks the sheet flow and helps prevent two sheets from entering together.

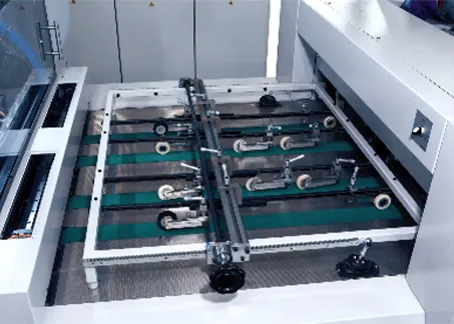

Feeder Table
- Optional MasterSet optical sheet alignment checks and corrects sheet position before die cutting.
- The suction belt table keeps sheets flat and controlled as they move forward.
- Rollers and brushes are adjusted from one central point, so feeder table setup is easier to manage.
- The sheet slowdown device reduces sheet speed before registration, giving the register system more stable sheet control.
- The registration system positions each sheet before it enters the cutting station.

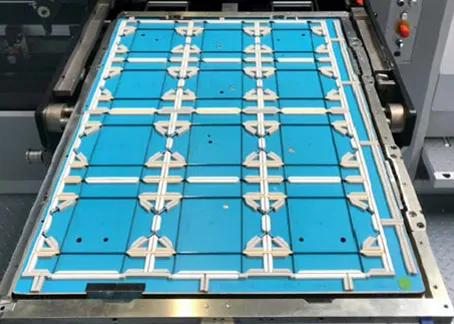

Die Cutting Unit
- The registration system keeps each sheet positioned before die cutting.
- The die cutting pressure can be adjusted by motor according to the material and cutting requirements.
- Pneumatic locking secures the die-cutting chase and cutting plate during setup and operation.
- The cutting plate can be adjusted in small steps for more accurate positioning.
- An air cushion helps operators move the cutting plate more easily during setup.
- The quick-lock chase shortens tool change time between jobs.
- An optional Chase Changer can be added when faster tool preparation is required.

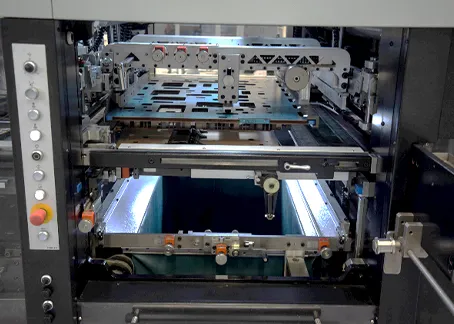

Stripping Unit
- The registration system keeps sheets aligned before waste removal.
- Integrated quick-lock systems are used for the top, middle, and bottom stripping tools, reducing setup time during job changes.
- Tool position can be adjusted with position indicators as a setup reference.
- Test sheets can be removed to check the die-cutting and stripping result during production.
- An optional pre-make-ready table can be used to prepare tools for the next job before changeover.

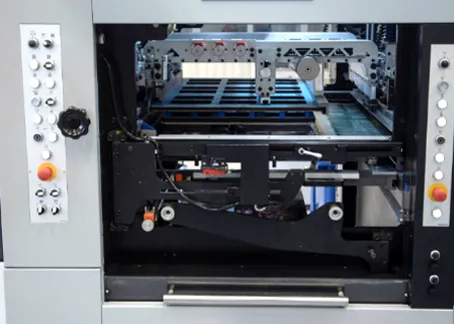

Blanking Unit
- Integrated quick-lock systems shorten tool changes in the blanking section.
- Tool position can be adjusted with position indicators for easier setup.
- Non-stop operation keeps finished blanks moving out while production continues.
- The automatic pallet change system reduces interruptions during finished stack handling.
- The separator sheet inserter places sheets between finished stacks, so each batch is easier to count and handle.
- The vacuum bar keeps blanks stable during separation and delivery.

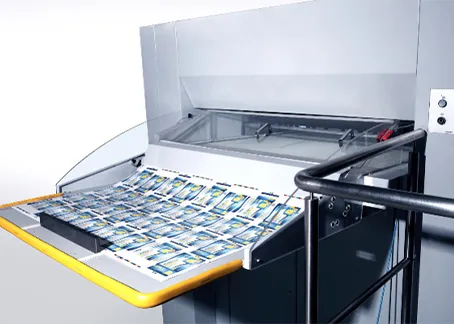

Test Sheet Removal
- Operators can check production quality without stopping the die cutter.
- Test sheets are cut and stripped before being delivered through the waste belt conveyor for inspection.
