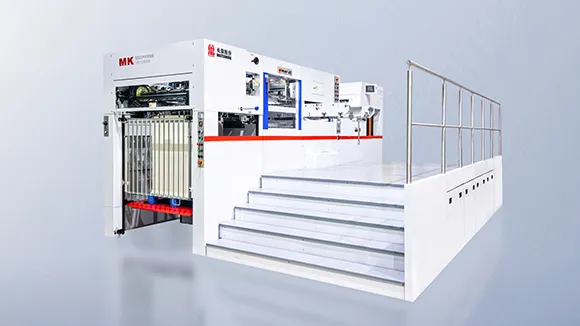

ECOPRESS MK 1050E
Automatic Die Cutter
Request a Quote
Watch Video
ECOPRESS MK 1050E die cutters with stripping are developed for printing and packaging businesses that need reliable post-press equipment with a simpler, more economical configuration. Our ECOPRESS MK 1050E die cutting machines can handle paperboard packaging through die cutting and stripping, so sheets can be cut accurately, and leftover waste can be removed in the same workflow. These die cutters keep die cutting and stripping stable and easy to manage for regular packaging finishing work.
Technical Parameters
| Max. Sheet Size | 1050 × 750 mm |
| Min. Sheet Size | 400 × 360 mm |
| Max. Die-Cutting Size | 1040 × 740 mm |
| Inner Chase Size | 1120 × 779 mm |
| Sheet Specification | Paper or cardboard: 90–2000g/m², 0.1–2 mm; corrugated board: ≤4 mm, flatness < 20 mm/m² |
| Max. Die-Cutting Pressure | 250 t |
| Max. Machine Speed | 7500 sheets/hour* |
| Max. Feeder Stack Height, Including Pallet | 1150 mm |
| Max. Delivery Stack Height, Including Pallet | 1000 mm |
| Main Motor Power | 11 kW |
| Weight | Approx. 17 t |
| Overall Dimensions (L × W × H), Including Operation Platform | 5800 × 4080 × 2050 mm |
| Compressed Air Requirements | Pressure: 0.55–0.7 MPa; flow rate: ≥0.37 m³/min |
| Note Actual speed and accuracy may vary depending on board thickness, flute type, sheet flatness, and the required die-cutting pattern. |
|
Main Features

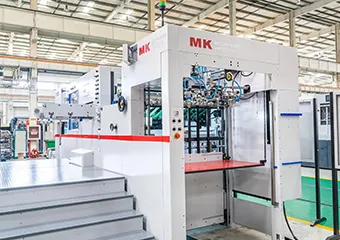

Feeding Unit
- The imported aluminum alloy feeder comes with adjustable suction tubes for different sheet conditions.
- Three anti-collision devices help protect the feeding area during operation.
- Uses an efficient suction feeder with four suction cups and four forwarding suckers to pick up and transfer sheets more steadily.

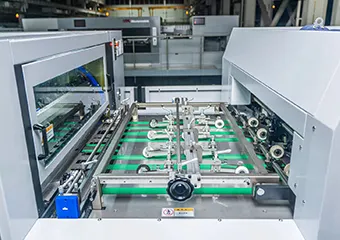

Feeder Table
- Chain-driven movement keeps the feeding table running steadily during sheet transfer.
- An integral adjustable feeding frame and related feeding accessories are included, following the configuration used on higher-end models.
- The improved sheet slowing structure keeps the sheet movement more stable before positioning.
- Sheet feeding detection and control reduce feeding errors and help lower waste during production.

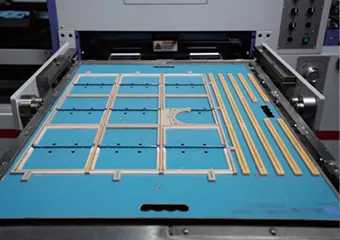

Die Cutting Unit
- The worm gear and worm set is sourced from Taiwan to support longer service life for key transmission parts.
- Resin sand ductile iron casting is used for the side frames and base, giving the die-cutting section better strength for long-term operation.
- The structure remains stable under high die-cutting pressure, which is important for accurate cutting on thicker paperboard.

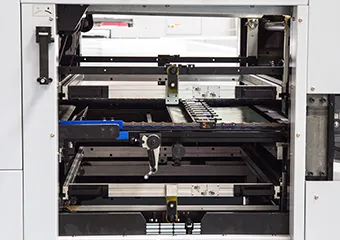

Stripping Unit
- The stripping unit uses a classic waste removal structure for stable stripping after die cutting.
- Central positioning keeps the stripping tools aligned during setup and operation.
- The upper stripping frame can be lifted, giving operators easier access for tool adjustment and maintenance.

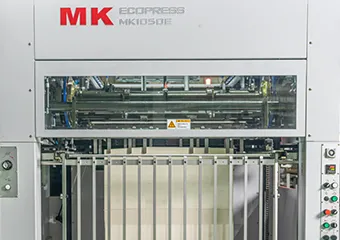

Delivery Unit
- Mechanical collection and pressing brushes slow the sheets down and help control delivery at the output end.
- Bidirectional auxiliary air blowing supports smoother sheet collection.
- The pneumatic sampling mechanism lets operators remove samples for quality checks during production.

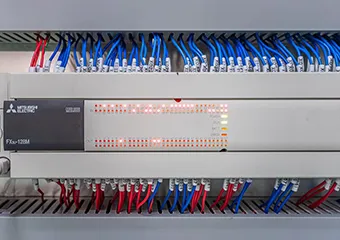

Control System
- The control system is designed according to EU CE safety requirements and uses a high-grade European circuit safety module.
- Double-loop safety detection provides more stable and accurate protection during operation.
- Imported electrical components are used for the main control functions.
